Quick Thermal Conductivity Meter

SCP & KEM

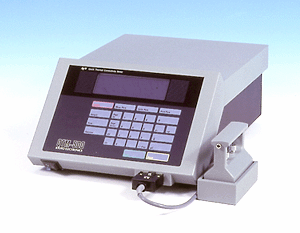

Quick Thermal Conductivity Meter (QTM-500)

Thermal conductivity of all types of sample materials can be measured quickly and easily. Just place the probe on sample surface of temperature equilibrium and wait for 60 seconds. You will obtain the results.


For thin sample materials like film (30 - 100µm), sheet or board (0.1 - 8mm), use the optional software for measurement of thin films.

Measurement Method:

Hot Wire Method



Range:

0.023 - 12W/m • K (standard probe)



Precision:

±5%/reading value per reference plate



Reproducibility: ±3%/reading value per reference plate
